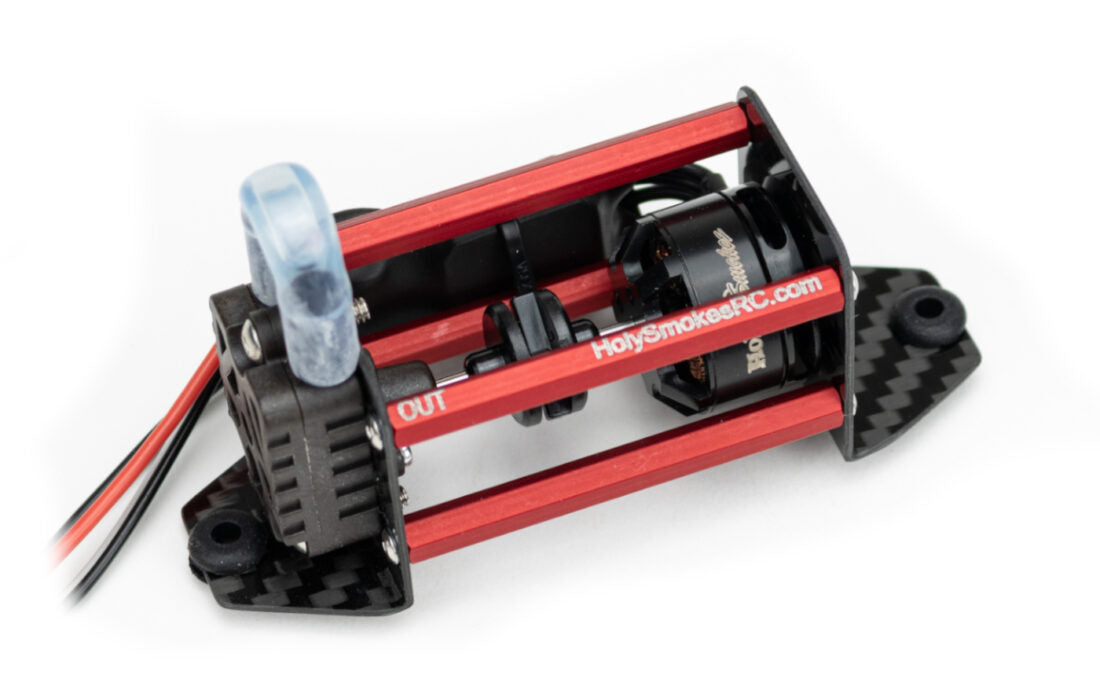

The next generation Holy Smokes Gen2 Smoke System is the result of continued collaboration with Danhakl Designs and our Team Holy Smokes Members.
Our Vision: Provide superior & repeatable smoke system performance.
Constructed of prepreg carbon fiber composite, aluminum & fiber filled plastic, the pump is the lightest available at only 2.22oz/62.93g. It provides a variable & programmable flow rate ensuring maximum smoke fluid vaporization. This system has extensive field-testing with years of modeling experience behind it.
The new "glue-less" assembly has improved the design rigidity with only a minor compromise in weight (+.28oz/7.9g) due to the substitution of anodized aluminum hex standoffs vs nylon.
- Prepreg Carbon Fiber Construction
- OEM spec. 800KV Brushless Motor; 15A ESC,
- Input Voltage – 2S-3S Lithium Polymer, 12.6v max Current draw 300-600mAh
- Length- 3.5 inches
- Diameter- 1.75 inches
- Weight- 2.22 ounces/62.93 grams
Separate Power & Signal Leads - 2.4 GHz receiver power requires no auxiliary battery Adjustable Flow Rate - Throttle to Smoke Mixing

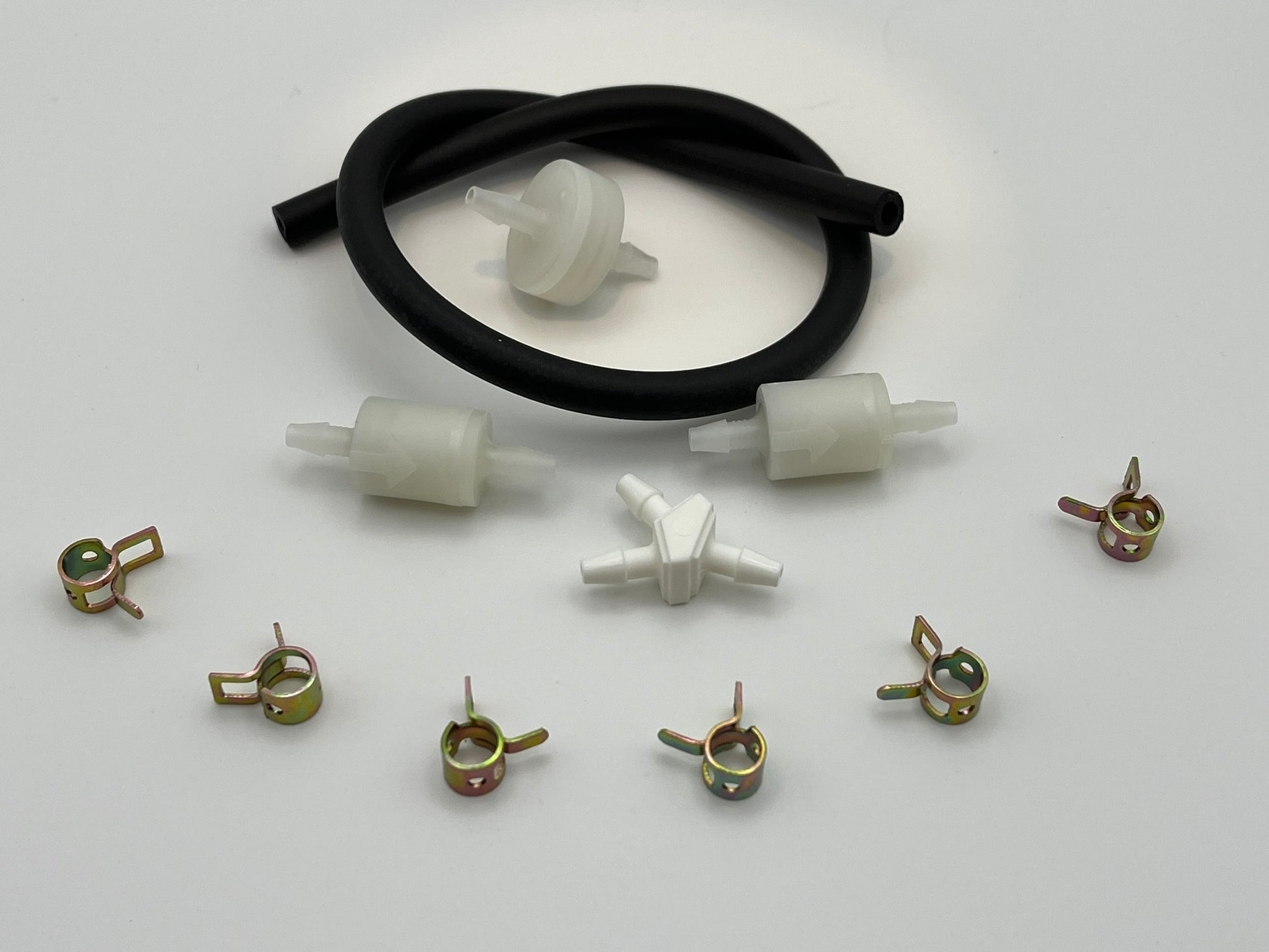

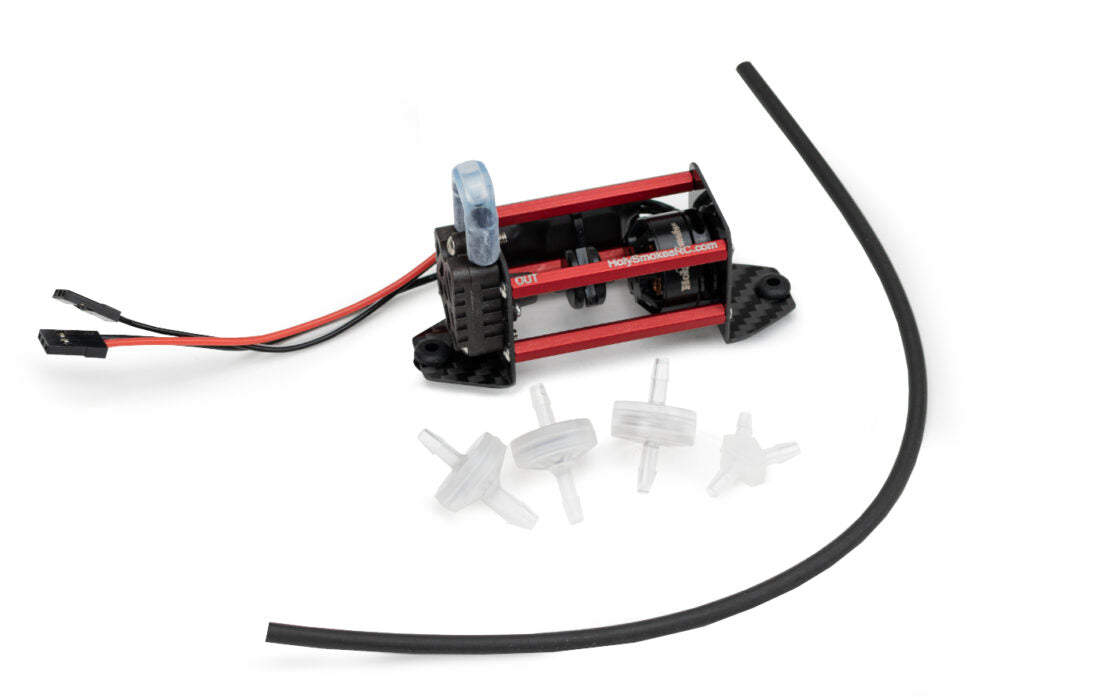

Holy Smokes Gen2 Smoke Pump & Plumbing Kit
- (1) Tee Fitting
- (2) Check valve(s)
- (1) In-line filter w/ stainless steel screen
- (1) 12” length of Viton tubing
